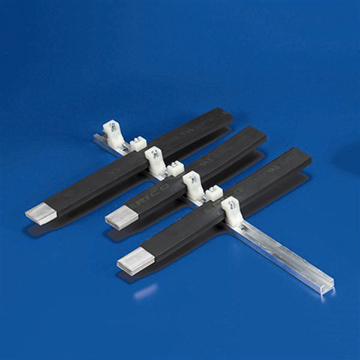

UFS kit Eriflex Flexibar support

UFS Kit ERICO FLEXIBAR Support

Assembly comprised of a 2 m aluminum section and 24 retaining blocks made of glass-reinforced halogen-free polyamide.

  • Possible to make up 3 supports, 650 mm long each for 4 ERICO FLEXIBAR
  • Recommended distance between clamps: 16 inches max.

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)



Categories: , , ,

Specifications
