Compact and Adjustable Busbar Support

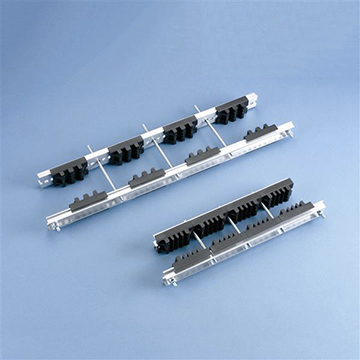

Compact and Adjustable Busbar Supports (CABS)

  • Universal fi xing support
  • Easy to install
  • Adjustable distance between each phase (12.5 mm pitch)
  • Standard or customised support
  • Cost-effective
  • For all busbar types and ERIFLEX® ERILINK busducts
  • Halogen Free
  • Working temperature:
    -40°C up to 130°C
  • Self extinguishing UL® 94 VO

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

Categories: , ,

Product Description

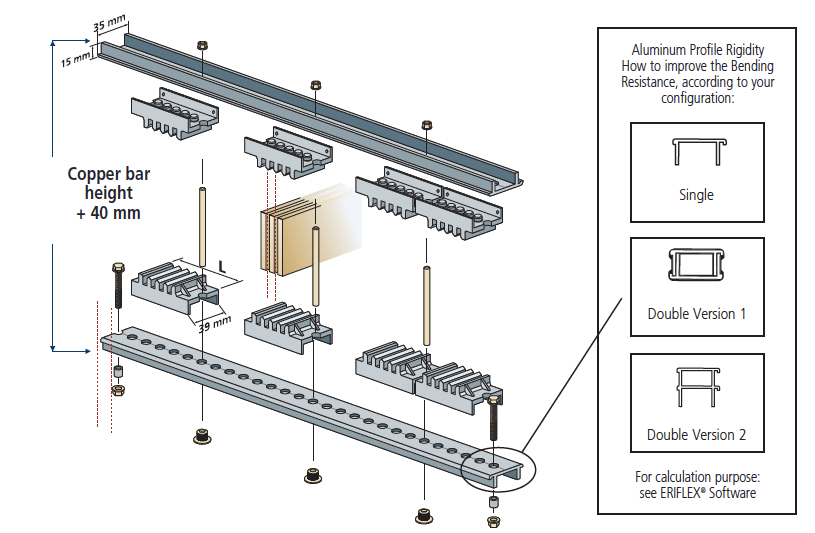

CABS technical features

  • Panels: 300 to 800 mm
  • Bars: 30 to 125 mm
  • Thickness: 5 or 10 mm
  • From 400A up to 4500 A

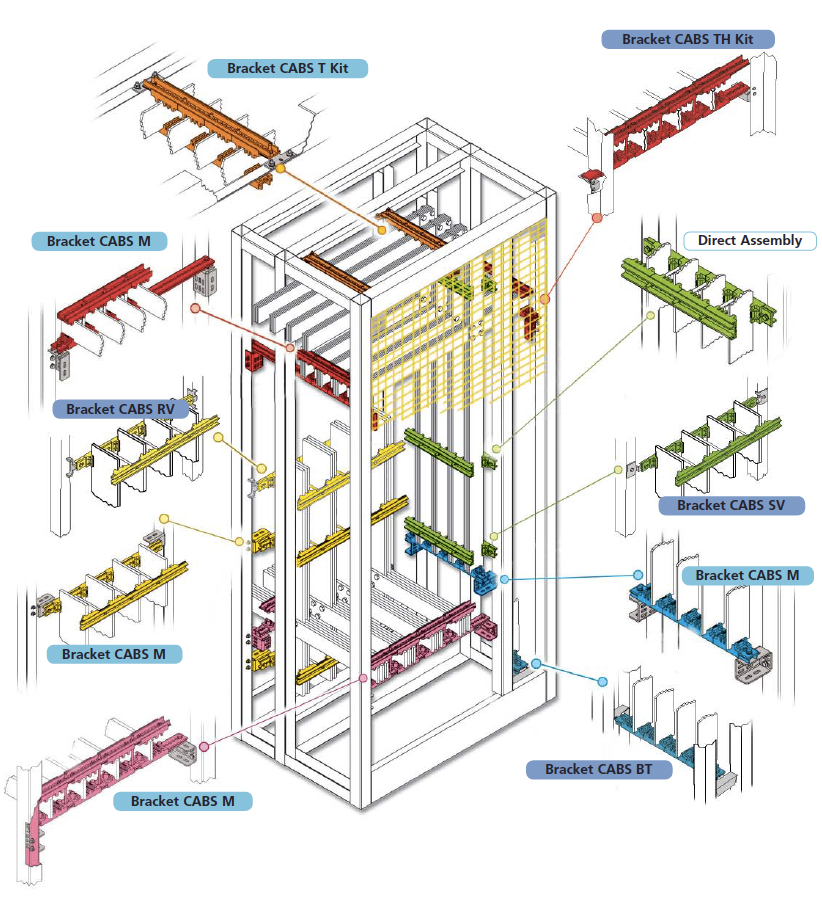

CABS image

Specifications
