Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

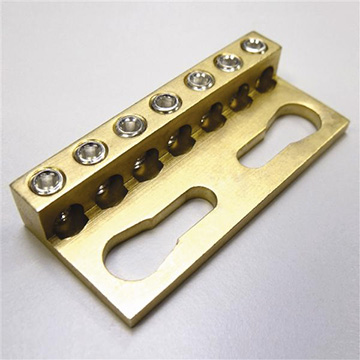

| Part Number | 553150 |
| Max Current Rating | 450 A |
| Number of Tunnel Connections | 7 |
| Tunnel Connection Compact Stranded Wire Size | 1,5 – 16 mm² |
| Tunnel Connection Wire Size – Ferrule | 1,5 – 16 mm² |
| Tunnel Connection Wire Size | #8 – 1/0 |

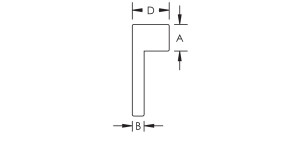

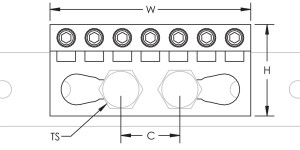

| Depth (D) | 12.5 mm |
| Height (H) | 31 mm |
| Width (W) | 68 mm |
| A | 9 mm |
| B | 4 mm |
| Unit Weight | 0.082 kg |
| Thread Size TS | C |
| M5 | 18 mm |
| M6 | 17.5 mm; 25 mm |
| M8 | 20 mm; 25 mm |
| M10 | 25 mm |
The ideal ready-to-install flexible wire replacement solution that is specifically designed for connections to all molded case circuit breakers, including the most compact breakers on the market.
It connects to the front access terminals of the breakers without any additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. IBSB/IBSBR is available in cross section of 25 to 240 mm² (49.34 to 273.65 kcmil), lengths from 230 to 1,030 mm (9.06″ to 40.55″), and 80 to 350 A tinned and 400 to 630 A bare (red) copper.
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
High-quality CPI stainless steel grounding and bonding braids can be installed in extremely corrosive environments, like offshore applications or coastal applications. The full range of CPI braids are ideal for applications using stainless steel pipe or tanks, like the food and beverage industry, building industry, transportation, oil and chemical industry.
ERICO offers 316L stainless steel braids and lugs, one of the highest resistant stainless steel options on the market. ERICO’s proprietary manufacturing process has been optimized to provide the best braiding, crimping, cutting and punching.
