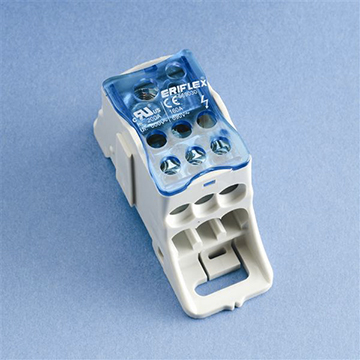

UDJ-160A

UDJ 160 A Single Pole Distribution Block

UDJ 160 A – IEC
200 Amp – UL

• Visual inspection of wire and confirmation of connection
• Halogen-free
• IP 20 finger safe
• 95% fill ratio
• Self extinguishing: UL94 V-0
• Tinned copper blocks: Copper or Aluminum Cable
• Short circuit current rated up to 100 KA – See UL file E198301
• RoHS Compliant

pdf icon smallClick here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)



Categories: , ,

Product Description

Part Number Description Packaging Unit Weight kg / lbs
569030 UDJ 160 A 1 0.15/ 0.32
569150 FSJ∗ 25 0.03/ 0.07

UDJ125A-dimensions



Modular: keeping only one input, the blocks can be supplied in parallel using a jumper wire. Easily double the neutral.



∗ CENTER TO CENTER DRILLING: 64 mm (2.53”)

  • Icw KA rms 1s : 11.8
  • IPk KÂ : 30
  • Ui : 1000 V AC/DC IEC
  • Vin : 600 V UL

Specifications
