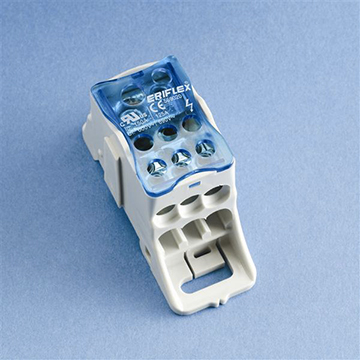

UDJ 125 A – IEC
150 Amp – UL
• Visual inspection of wire and confirmation of connection
• Halogen-free
• IP 20 finger safe
• 95% fill ratio
• Self extinguishing: UL94 V-0
• Tinned copper blocks: Copper or Aluminum Cable
• Short circuit current rated up to 100 KA – See UL file E198301
• RoHS Compliant
Click here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)
| Part Number | Description | Packaging Unit | Weight kg / lbs |
| 569020 | UDJ 125 A | 1 | 0.15/ 0.33 |
| 569150 | FSJ∗ | 25 | 0.03/ 0.07 |
Modular: keeping only one input, the blocks can be supplied in parallel using a jumper wire. Easily double the neutral.
∗ CENTER TO CENTER DRILLING: 64 mm (2.53”)
• Icw KA rms 1s : 4.2
• IPk KÂ : 30
• Ui : 1000 V AC/DC IEC
• Vin : 600 V UL
The ideal ready-to-install flexible wire replacement solution that is specifically designed for connections to all molded case circuit breakers, including the most compact breakers on the market.
It connects to the front access terminals of the breakers without any additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. IBSB/IBSBR is available in cross section of 25 to 240 mm² (49.34 to 273.65 kcmil), lengths from 230 to 1,030 mm (9.06″ to 40.55″), and 80 to 350 A tinned and 400 to 630 A bare (red) copper.
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
NEW Generation Flexible Wire Replacement
ERICO® FLEXIBAR® is a flexible busbar wire replacement solution for low voltage applications available from 27 mm² up to 1200 mm² and 125 A to 2800 A.
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
