UD-80A distribution blocks

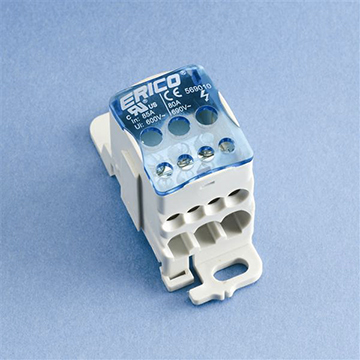

UD 80 A Single Pole Distribution Block

80 A – IEC
85 Amp – UL

• Visual inspection of wire and confirmation of connection
• Halogen-free
• IP 20 finger safe
• 95% fill ratio
• Self extinguishing: UL94 V-0
• Tinned copper blocks: Copper or Aluminum Cable
• Short circuit current rated up to 100 KA – See UL file E198301
• RoHS Compliant

pdf icon smallClick here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)



Categories: , ,

Product Description

Part Number Description Packaging Unit Weight kg / lbs
569010 UD 80 A 1 0.07 / 0.15

UD80-dimensions

Modular: keeping only one input, the blocks can be supplied in parallel using a jumper wire. Easily double the neutral.

∗ CENTER TO CENTER DRILLING: 54 mm (2.12”)

• Icw KA rms 1s : 3
• IPk KÂ : 22
• Ui : 1000 V AC/DC IEC
• Vin : 600 V UL

Specifications
