250 A – IEC
255 Amp – UL

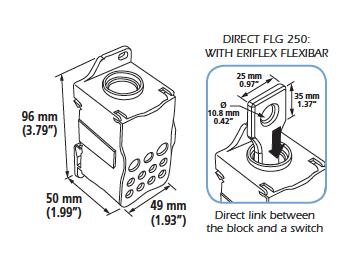

ERICO® FLEXIBAR® connection at input, using flag terminals (FLG 250 A & FLG 400 A)
Click here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)
| Part Number | Description | Packaging Unit | Weight kg / lbs |
| 569040 | UD 250 A | 1 | 0.42/ 0.89 |
| 569160 | FLG 250∗ | 10 | 0.05/ 0.12 |
Modular: allows versatile building of
power blocks single pole, two pole,
three pole or four pole.
∗ CENTER TO CENTER DRILLING: 85 x 29 mm (3.35” x 1.14”)
• Icw KA rms 1s : 24.5
• IPk KÂ : 51
• Ui : 1000 V AC/DC IEC
• Vin : 600 V UL
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
• Improved wiring capacity
• Direct electrical connection
• Strong mechanical assembly
• Transparent cover
Click here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)
The ideal ready-to-install flexible wire replacement solution that is specifically designed for connections to all molded case circuit breakers, including the most compact breakers on the market.
It connects to the front access terminals of the breakers without any additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. IBSB/IBSBR is available in cross section of 25 to 240 mm² (49.34 to 273.65 kcmil), lengths from 230 to 1,030 mm (9.06″ to 40.55″), and 80 to 350 A tinned and 400 to 630 A bare (red) copper.
