TTCE tinned copper tubular braids

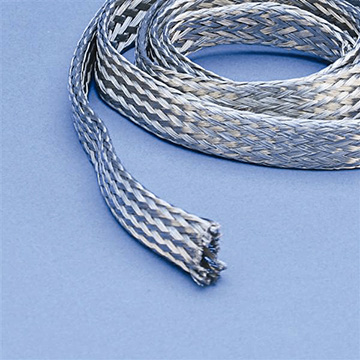

TTCE Tinned Copper Tubular Braids

The primary use of tubular braid is to provide sensitive cables with an EMC/EMI screen to shield them against electromagnetic, electrostatic and radio frequency interference. Optimum screening performance is obtained using copper wire braid that can also be used for earth continuity purposes.

  • For screening connecting cables between equipment used in an electromagnetically disturbed environment.
  • Supplied with draw wire

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)



Categories: , ,

Specifications
