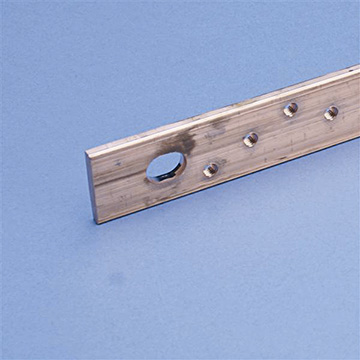

TCBW threaded busbar

TCBW Threaded Busbar

  • Threaded hole pattern provides 40% more connections
  • End slots can be used to fix busbar to a support or connect the main input conductor
  • Heavy-duty power connection
  • Circuit breaker, generator and prefabricated power network conductor
  • Alternative to large and multiple cables
  • Earth/ground connection
  • Power distribution
  • Rounded edges

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)


Categories: , ,

Product Description

Material: Copper



Part Number Width
W		 Thickness
T		 Length
L		 Thread Size
TS		 A B C Unit Weight
549030 32 mm 5 mm 2,000 mm M6 17.5 mm 16 mm 12 mm 2.65 kg

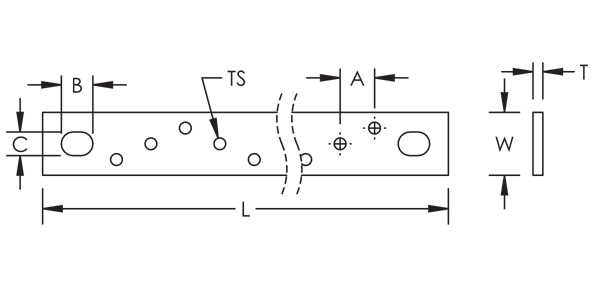

TCBW threaded busbar specifications

Specifications
