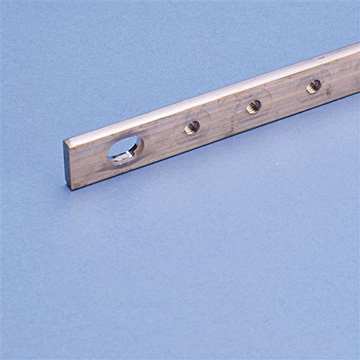

TCB threaded busbar with fixing slot

TCB Threaded Busbar ..x 5 x 2000 mm

  • End slots can be used to fix busbar to a support or connect the main input conductor
  • Heavy-duty power connection
  • Circuit breaker, generator and prefabricated power network conductor
  • Alternative to large and multiple cables
  • Earth/ground connection
  • Power distribution
  • Rounded edges

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

Categories: , ,

Product Description

Part Number Description Width
W		 Thickness
T		 Length
L		 Thread Size
TS		 Unit Weight
549000 TCBS 15 x 5 15 mm 5 mm 2,000 mm M6 1.19 kg
549010 TCBS 20 x 5 20 mm 5 mm 2,000 mm M6 1.67 kg
549020 TCBS 30 x 5 30 mm 5 mm 2,000 mm M6 2.50 kg

Additional Information

Width

15 mm, 20 mm, 30 mm
Thickness

5 mm
Length

2000 mm
Thread Size

M6
A

17.5 mm, 25 mm
B

12 mm, 14 mm, 16 mm
C

8 mm, 10 mm, 12 mm
Weight

1.19 kg, 1.67 kg, 2.50 kg

Specifications
