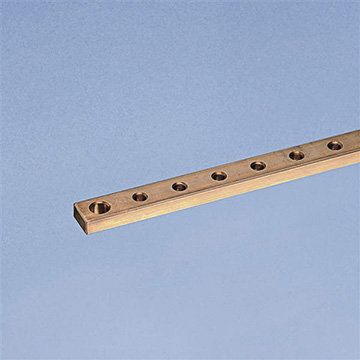

TCB threaded busbar with fixing hole

TCB Threaded ..x 10 x 1000/2000 mm

  • End holes can be used to fix busbar to a support or connect the main input conductor
  • Heavy-duty power connection
  • Circuit breaker, generator and prefabricated power network conductor
  • Alternative to large and multiple cables
  • Earth/ground connection
  • Power distribution
  • Rounded edges

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)


Categories: , ,

Product Description

Material: Copper



Part Number Description Width
W		 Thickness
T		 Length
L		 Hole Size
HS		 Thread Size
TS		 A Unit Weight
550290 TCB 20 x 10 x 1000 20 mm 10 mm 1,000 mm 10 mm M8 25 mm 1.67 kg
550180 TCB 30 x 10 x 1000 30 mm 10 mm 1,000 mm 10 mm M8 25 mm 2.50 kg
550160 TCB 20 x 10 x 2000 30 mm 10 mm 2,000 mm 10 mm M8 25 mm 5.40 kg

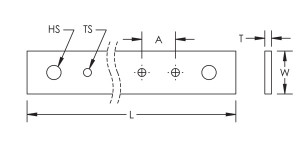

TCB threaded busbar with fixing hole specifications

Specifications
