Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

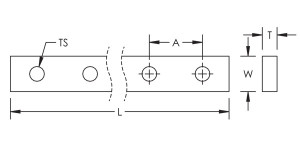

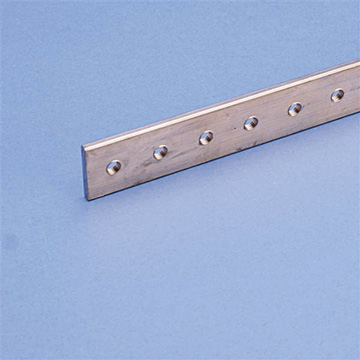

| Part Number | Width | Thickness | Length | Thread Size | A | Unit Weight |
| 549230 | 12 mm | 2 mm | 1,000 mm | M5 | 18 mm | 0.30 kg |
| 550200 | 12 mm | 4 mm | 1,000 mm | M5 | 18 mm | 0.43 kg |
| 549200 | 18 mm | 4 mm | 1,000 mm | M8 | 20 mm | 0.60 kg |
| 549210 | 25 mm | 4 mm | 1,000 mm | M6 | 20 mm | 0.80 kg |
NEW Generation Flexible Wire Replacement
ERICO® FLEXIBAR® is a flexible busbar wire replacement solution for low voltage applications available from 27 mm² up to 1200 mm² and 125 A to 2800 A.
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
MBJ Grounding and Bonding Braids are a reliable and convenient grounding solution for applications that require flexibility and durability. The tinned copper ground braids with massivated palms come ready to install without any additional cutting, stripping, crimping or punching and do not require the addition of tin or crimped lugs. The proprietary manufacturing process optimizes the electrical contact between each wire and helps eliminate moisture issues in the palms, preventing corrosion and lengthening the useful life of the braid.
The ideal ready-to-install flexible wire replacement solution that is specifically designed for connections to all molded case circuit breakers, including the most compact breakers on the market.
It connects to the front access terminals of the breakers without any additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. IBSB/IBSBR is available in cross section of 25 to 240 mm² (49.34 to 273.65 kcmil), lengths from 230 to 1,030 mm (9.06″ to 40.55″), and 80 to 350 A tinned and 400 to 630 A bare (red) copper.
