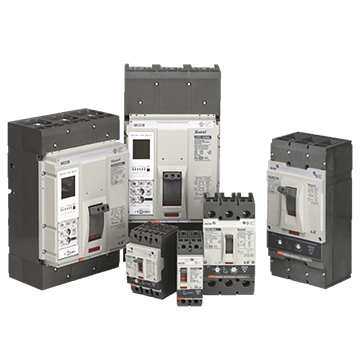

new Susol UL MCCB

Susol UTE and UTS Series UL Molded Case Circuit Breakers

New series Susol Molded Case Circuit Breakers with thermal-magnetic or electronic trip unit (800~1200AF) are designed to protect low voltage electrical systems from damage caused by overloads and short circuits.

Compact design saves space. UL 489 listed MCCBs are designed and tested in accordance with Underwriters Laboratories, Inc. and they are rated from 15 through 1200 amperes in seven frame sizes.

pdf icon smallClick here for Susol UTE and UTS series UL MCCB catalogue (12.4 MB)



Categories: ,

Product Description

● Simplified product range
– AF: 100AF, 150AF, 250AF, 400AF, 600AF, 800AF, 1200AF
– Ampere Range: 15A ~ 1200A
● High performance
● Icu: Max 100kA @480VAC
● Various accessories
● Extended rotary handle
● Locking devices
● Various trip units
– FTU: Fixed thermal & Magnetic unit
– FMU: Adjustable thermal, Fixed magnetic unit
– ATU: Adjustable thermal & magnetic unit
– MCS: Molded Case Switch
– MCP: Motor Circuit Protector
● Ultimate breaking capacity (kA rms)
● World class standards with UL489
● Electrical auxiliaries
● Flange handle
● Variable Depth Mechanism

View Catalogue
