Downloads
Starvert iC5 Catalogue (2.42 MB)
Starvert iC5 ModbusRTU Manual (197.24 kB)

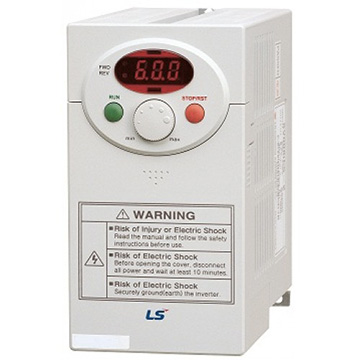

Starvert iC5
- Powerful & compact sensorless vector control VFD
- 1 phase 0.1~2.2 kW (0.5~3HP), 200~230V
- Selectable V/F, Sensorless vector control
- Motor parameter auto-tuning
- Powerful torque at overall speed range
- IP20 enclosure
- Built-in potentiometer
- Optional Modbus RTU Communication
Related Products
-
Starvert iS7
- High torque performance and precise VFD
- 3 Phase 0.75~22kW (1~30HP), 200~230V
- 3 Phase 0.75~160kW (1~250HP), 380~480V
- Constant torque/variable torque dual rating
- Selectable V/F, sensorless, sensored vector control
- Available IP54 enclosure 0.75~22kW (1~30HP) as built-in option
- Built-in RS4 485 (LS BUS/Modbus RTU) Communication
- Available EMC filter & DC reactor as built-in option EMC filter (0.75~22kW) / DC reactor (0.75~160kW)
Starvert iS7 Catalogue (2.85 MB)
Read more -
Starvert iH
- Robust dual fated high power VFD
- 3 phase 30~55kW (40~75HP), 200~230V
- 3 phase 30~220kW (40~300HP), 380~480V
- Space vector PWM technology
- Low noise level (high performance DSP & IGBT)
- Precise torque calculation through current control
- 4~20mA analog output
- 2 line 32 characters LCD display as standard
- Built-in process PI
- 150% starting torque
- 2~10 khz carrier frequency
Read more -
Starvert iS5
- Precise vector control standard VFD
- 3 Phase 0.75~55kW (1~75HP), 200~230V
- 3 Phase 0.75~75kW (1~100HP), 380~480V
- Selectable V/F, sensorless, sensored rector control (optional)
- Optimum acceleration & deceleration for a maximum torque
- Multi-function 1/0 terminal
- input : 27 functions / output : 21 functions
- Communication options : Modbus RTU, Profibus-DP, Devicenet, RS485 (LS Bus), Fnet
Starvert iS5 Catalogue (545.59 kB)
Read more
