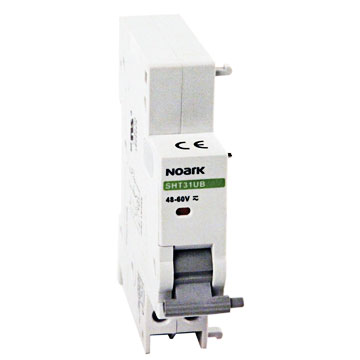

shunt trip UL 1077 supplementary protectors accessories - DIN Rail miniature circuit breakers Noark

Shunt Trip

UL 1077 Accessory

Auxiliary Contact: 1NO+1NC or No Auxiliary Contact
Device Category: UL 489 and 489A
Rated Voltage: 110-415 Vac/110-130 Vdc, 48 Vac/dc or 12-24 Vac/dc

Categories: , ,

Product Description

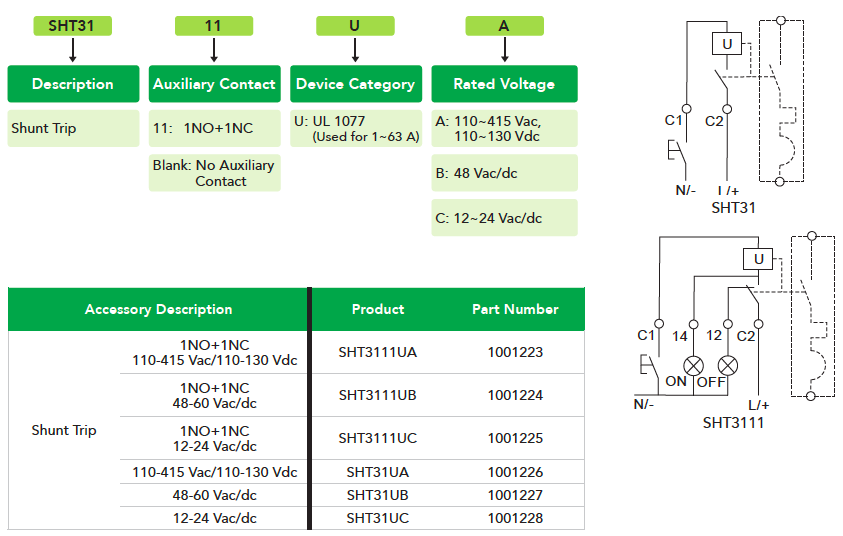

shunt trip description UL 1077 supplementary protectors accessories - DIN Rail miniature circuit breakers Noark


UL 1077 Accessory Specifications

UL 1077 supplementary protectors accessories specifications - DIN Rail miniature circuit breakers Noark

Additional Information

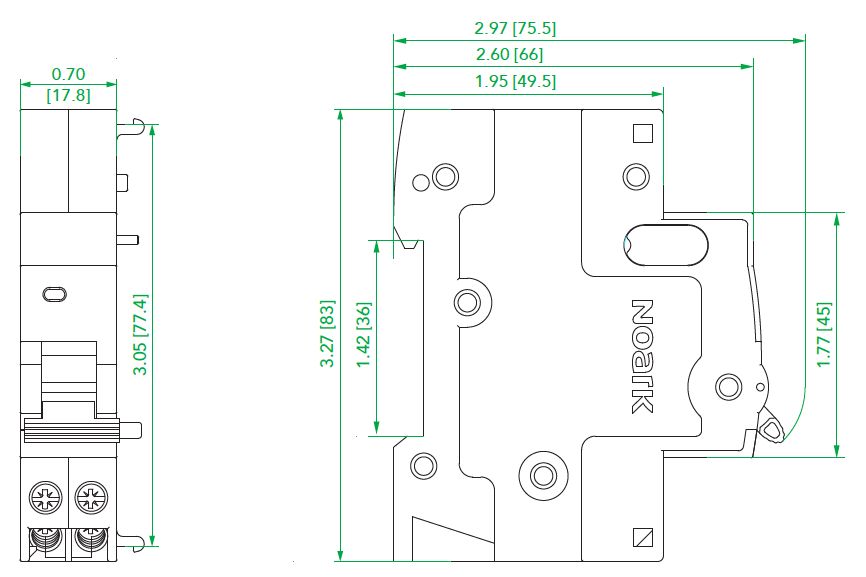

Dimensions

Dimensions

SHT31 / UVT31
Shunt Trip / Under-Voltage Trip

Unit: in [mm]
shunt and under volatge trip dimensions UL 1077 supplementary protectors accessories - DIN Rail miniature circuit breakers Noark

Download Catalog

pdf icon small NOARK DIN Rail Miniature Circuit Breakers Catalog (11.7 MB)
