SBTT

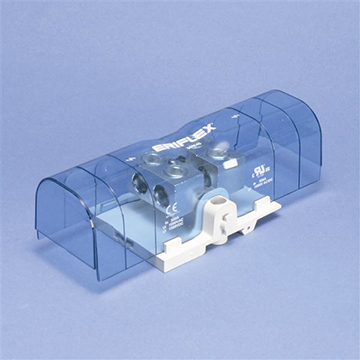

SBTT Power Terminals

  • Tinned Copper Block : Copper or Aluminum Cables
  • Visual inspection of wire and confi rmation of connection
  • Quick connection with studs or tunnel
  • Easy connection on ERICO® FLEXIBAR® or Cable
  • Adjustable transparent cover
  • Halogen Free
  • Self extinguishing: UL94 V-1
  • Easy fixing: clip on din rail with end cap or mount to panel with screws
  • Short Circuit Rated up to 100 KA – See UL® fi le E198301
  • RoHS Compliant

pdf icon smallClick here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)
