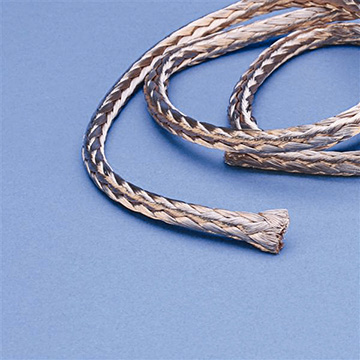

RRCB plain copper round braids

RRCB Plain Copper Round Braids

  • Braids in coil are mainly used for power distribution or earthing applications
  • Non-magnetic material
  • Standard wire diameter: 0.15 mm
  • 25 m coils

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)



Categories: , ,
