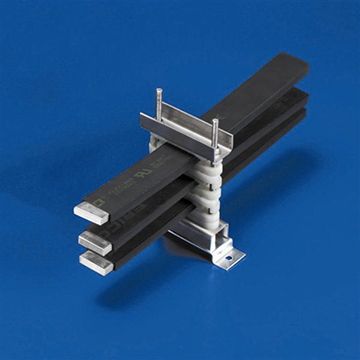

RFS Reinforced ERICO FLEXIBAR Support

  • Allows up to 8 ERICO FLEXIBAR in parallel.
  • Easy mounting in the panel. (.984 in pitch)
  • Recommended distance between clamps: 16 inches.

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)
