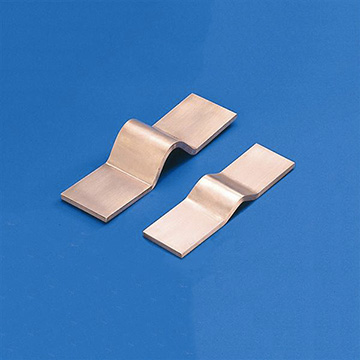

PPS presswelded power shunt

PPS Presswelded Power Shunts

  • Press welded laminations are welded to each other through direct current applied to pieces under pressure
  • Press welding forms a solid palm with the properties of a plain bar
  • Smaller cross section for same capacity
  • Runs cooler than equal section

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)



Product Description

Part Number 566050
Material Copper
Finish Plain
Lamination Thickness 0.3 mm
Cross Section 1,000 mm²
∆T 30 K 1,825 A
∆T 50 K 2,418 A
Length (L) 300 mm
Height (H) 54 mm
A 100 mm
B 100 mm
C 10 mm
Unit Weight 3.065 kg
2 Bar Current Coefficient 1.6
Standard Packaging Quantity 1 pc
UPC 78285687843
EAN-13 3479775660509

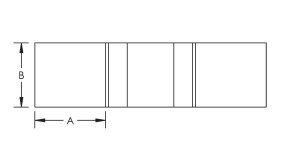

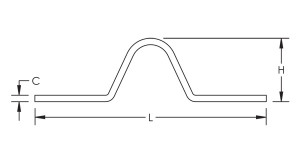

PPS presswelded power shunt specificationsPPS presswelded power shunt specifications 2

When used in parallel, the two shunts must be spaced with a minimum distance equal to the thickness of the shunt to allow air cooling.

Specifications
