Product Description
- Material: Copper
- Wire Diameter: 0.15 mm
When used in parallel, the two shunts must be spaced with a minimum distance equal to the thickness of the shunt to allow air cooling.

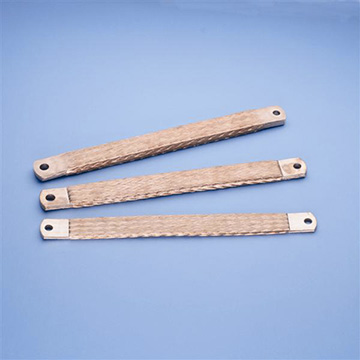

PBCR Braided Power Shunts
- Ideal for transformer-busduct link
- Drilled palms ready to use
- Integral palm without tin addition or crimped lug provides weight savings
- Extra flexible power connection and good resistance to vibration
- UL® Listed to UL 467 up to 100 mm² for grounding and bonding application
- UL® Recognized to UL 67
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
