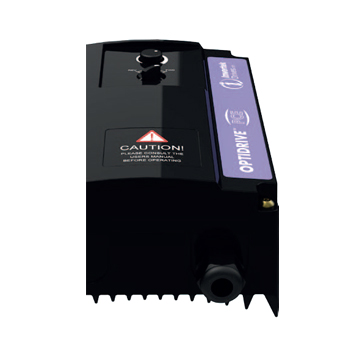

PCE-optidrive

Optidrive PCE

Motor Mount Variable Speed Drive

Up to 1.5kW / 2HP
200 – 240V I Phase Input
380 – 480V 3 Phase Input

  • High performance drive suitable for direct motor mounting
  • Sensorless vector control — up to 200% torque from zero speed
  • IP55 enclosure protects against dust and fluid ingress
  • Available with local Potentiometer and forward / reverse selection
  • Suitable for motor power ratings up to 1.5kW / 2HP
  • Supplied with universal adaptor plates

pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



Categories: ,

Product Description

The Integrated Drive Solution
Compact yet powerful, Optidrive PCE is the ideal solution for convenient motor control

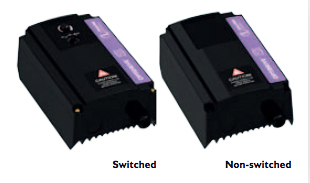

Switched & Non-switched Units Available
Local potentiometer for speed control

Programmable switch:
Drive REV/OFF/FWD or: Hand/OFF/Auto

switched non and switched units

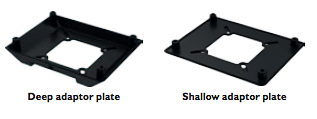

Universal Adaptor Plates
Supplied with 2 adaptor plates for direct fitting on most motors.

adaptor-plates
