optidrive e2 single phase VFD

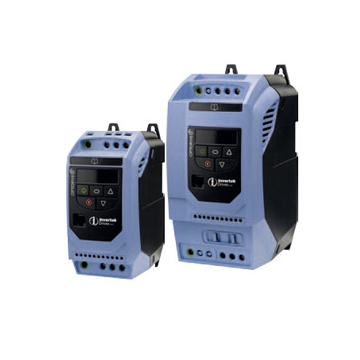

Optidrive E2 Single Phase

Single Phase General Purpose AC Drive

0.37 – 1.1 kW  /  0.5 – 1.5 HP
110 – 240V Single Phase Input

Single Phase Input / Single Phase Output

Designed to be cost effective and easy to use, the Optidrive E2 Single Phase is for use with PSC (permanent split capacitor) or shaded-pole single phase induction motors. Optidrive E2 Single Phase uses a revolutionary motor control strategy to achieve reliable intelligent starting of single phase motors.

Optidrive E2 Single Phase has only 14 standard parameters to adjust in its basic form. The Optidrive’s legendary ease of use ensures quick and easy drive commissioning. For the more advanced user the extended parameter set gives access to powerful additional functionality.

pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



Categories: ,

Product Description

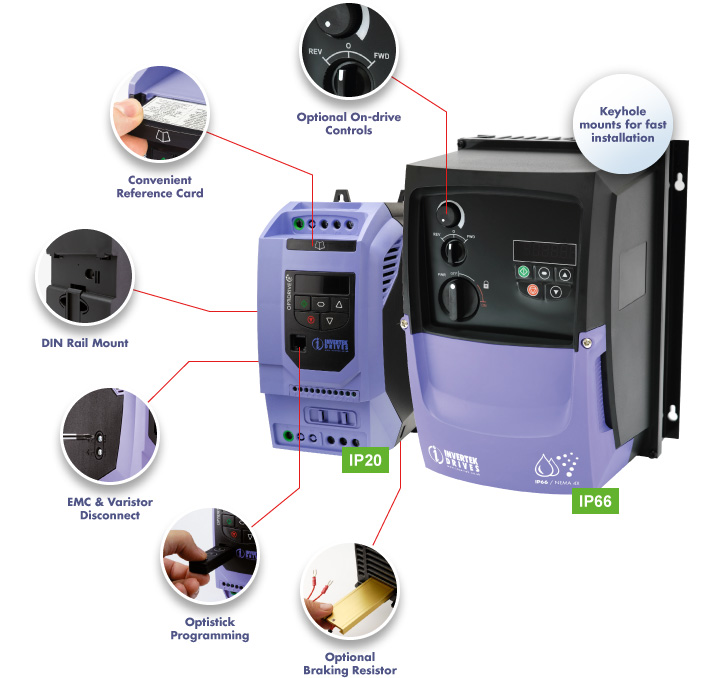

optidrive e2 single phase features

Click image to enlarge

  • Intuitive Keypad Control : precise digital control at the touch of a button.
  • Simple Commissioning : 14 parameter basic setup. Default settings suitable for most applications. Contactor style connection for simple wiring.
  • Integral RFI Filter : options for built-in and external filters for full EMC compliance.
  • Modbus RTU : easy integration with your control & monitoring systems.
  • Compact Enclosures : Small mechanical envelopes to help minimise your space requirements.
  • Brake Chopper (Size 2 only) : dynamic & compact options with heatsink mounted resistor.
  • High Overload Capability :  150% overload for 60 seconds , 175% overload for 2 seconds.
  • Industrial Ambient Ratings : IP20 Enclosure: 50°C IP66 Enclosure: 40°C

Typical Applications

Optidrive E2 single phase output can be used to provide energy efficient, accurate speed control of single phase motors in a variety of applications, especially fans and pumps which typically do not require high starting torque. The control method used provides significant energy savings compared to alternative methods.

Special Boost Phase

To ensure reliable starting, the Optidrive E2 initially ramps the motor voltage up to rated voltage whilst maintaining a fixed starting frequency, before reducing the frequency and voltage to the desired operating point.
