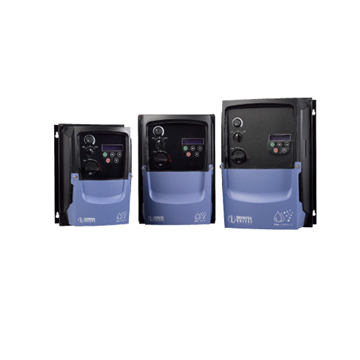

E2 variable frequency drive

Optidrive E2

General Purpose AC Drive

0.37 – 11kW  /  0.5 – 15HP
110 – 480V Single & 3 Phase Input

Dedicated to low power applications, E2 Variable Frequency Drive combines innovative technology, reliability, robustness and ease of use in a range of compact IP20 & IP66 enclosures.

pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



Categories: ,

Product Description

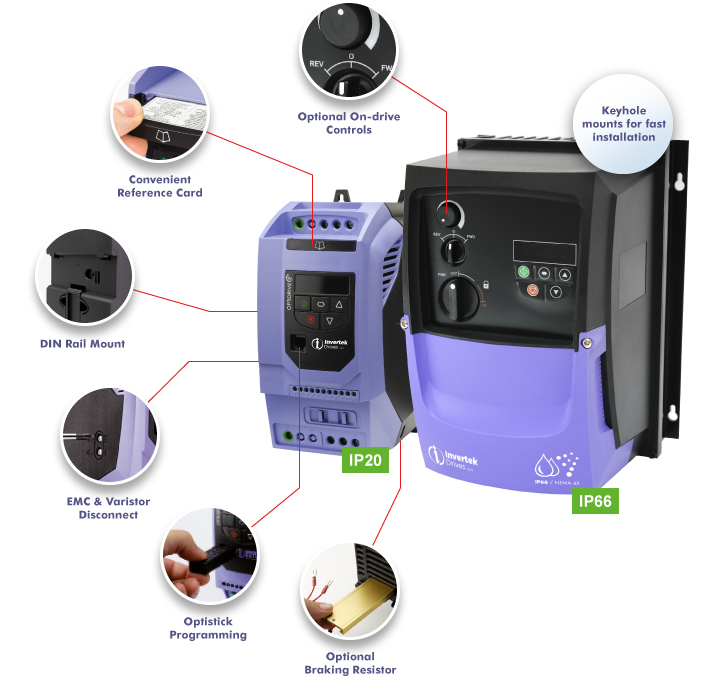

optidrive E2 features

click image to enlarge

E2 IP20

  • Available up to 11kW
  • Easy to use
  • Compact & robust

 E2 IP66

  • Available up to 7.5kW
  • Dust-tight
  • Washdown ready

 E2 Single Phase

  • Available up to 1.1kW
  • Single phase motor control
  • Special boost phase



Features

  • Intuitive Keypad Control : precise digital control at the touch of a button.
  • Simple Commissioning : 14 parameter basic setup. Default settings suitable for most applications. Contactor style connection for simple wiring.
  • Integral RFI Filter : options for built-in and external filters for full EMC compliance.
  • Modbus RTU : easy integration with your control & monitoring systems.
  • Compact Enclosures : small mechanical envelopes to help minimise your space requirements.
  • Brake Chopper (Sizes 2 & 3) : dynamic & compact options with heatsink mounted resistor.
  • High Overload Capability : 150% overload for 60 seconds, 175% overload for 2 seconds.
  • Industrial Ambient Ratings : up to 50°C operation

On-drive Control
Switched and non-switched versions of the IP66 drive are available.

Switched models feature:

  • Speed Potentiometer
  • FWD – 0 – REV
  • Power Isolator
