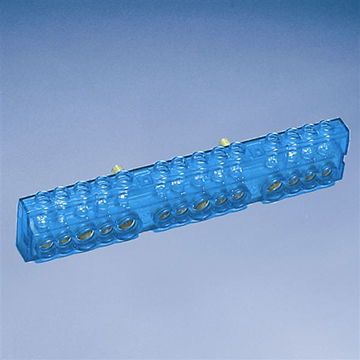

Neutral Bars

Related Products

• Hot



  ERICO ® FLEXIBAR

  0 out of 5

  NEW Generation Flexible Wire Replacement

  ERICO® FLEXIBAR® is a flexible busbar wire replacement solution for low voltage applications available from 27 mm² up to 1200 mm² and 125 A to 2800 A.

  • ERICO® FLEXIBAR® is formed with multiple layers of thin electrolytic copper insulated with a high-resistance, self-extinguishing PVC or silicone compound. The insulating sleeve is grooved on the inner surface, reducing the contact surface with the laminates to less than 20%, increasing flexibility and making installation easier.
  • ERICO FLEXIBAR connections are made by punching and bolting directly through
    the laminates or by clamping or welding. There are no lugs to purchase, helping to eliminate faulty connection problems and making installation simpler and faster.
  • Easily formed, ERICO FLEXIBAR improves assembly flexibility and aesthetics of panels
  • Ideal alternative to large cable & rigid busbar
  • Quality: 100% production dielectric tested

  Click here for Erico Flexible Conductors Catalogue (14.2 MB)



  ---

  Read more
•

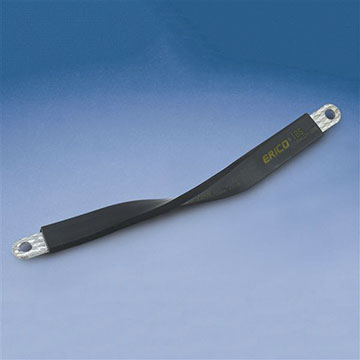

  IBS Flat Insulated Braided Conductor

  0 out of 5

  The ideal ready-to-install flexible wire replacement solution. They connect directly to the front access terminals of an electrical device without the need for additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. IBS Flat Insulated Braided Conductors are available in cross section of 25 and 50 mm² (49.34 and 98.68 kcmil), lengths from 230 to 1,030 mm (9.06″ to 40.55″), and amperages ranging from 177 to 274 A.

  Click here for Erico Flexible Conductors Catalogue (14.2 MB)



  ---

  Read more
•

  CPI Ground Stainless Steel Braids

  0 out of 5

  High-quality CPI stainless steel grounding and bonding braids can be installed in extremely corrosive environments, like offshore applications or coastal applications. The full range of CPI braids are ideal for applications using stainless steel pipe or tanks, like the food and beverage industry, building industry, transportation, oil and chemical industry.

  ERICO offers 316L stainless steel braids and lugs, one of the highest resistant stainless steel options on the market. ERICO’s proprietary manufacturing process has been optimized to provide the best braiding, crimping, cutting and punching.

  Click here for Erico Flexible Conductors Catalogue (14.2 MB)



  ---

  Read more
