M1 molded case switches noark

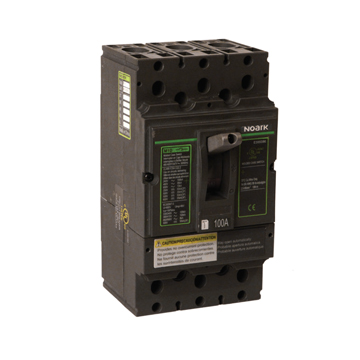

M1 – M4 Molded Case Switches

Series M Molded Case Switches, 100A – 600A

  • Intended for use only as disconnect devices
  • Overall dimensions, connection systems and accessories are the same as circuit breakers
  • Molded Case Switches are constructed similarly to Molded Case Circuit Breakers, except that the switch opens instantaneously at factory-set, non-adjustable trip points

pdf icon smallMolded Case Circuit Breakers – Molded Case Switches Catalogue (6 MB)



Categories: , ,

Product Description

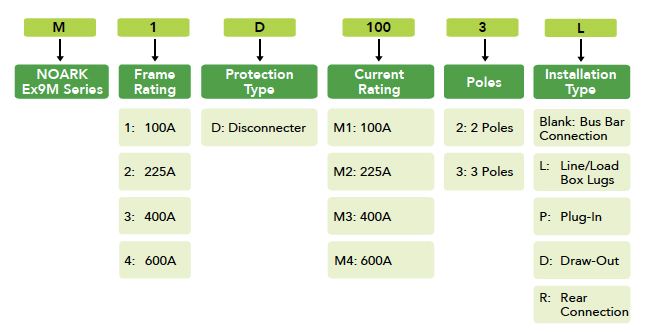

selection-guide-molded-case-switches

Specifications
