ISO-TP low voltage metric insulators

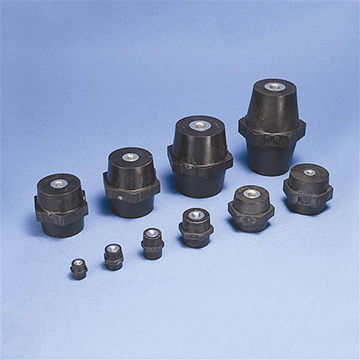

ISO-TP Low Voltage Metric Insulators

  • Working temperature -40°C up to 130°C
  • Polyamide material reinforced with glass fiber
  • Halogen free
  • Zinc plated steel inserts, threaded to ISO standard
  • Great stability of electrical and mechanical parameters
  • Self-extinguishing: UL® 94 VO

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

Categories: , ,

Product Description

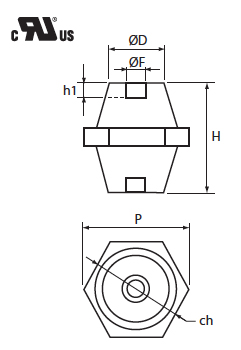

low voltage insulators details

  • CE Conformity
  • RoHS 2002/95/EC Compliance
  • IEC compliance
  • UL Recognized in E125470 and evaluated for dielectric withstand rating of 1500 Vac/Vdc
  • GOST



On Request:

  • Other Dimensions
  • Brass Inserts

Specifications
