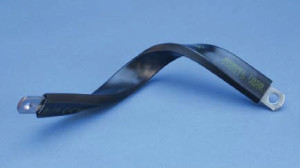

IBSB & IBSBR Insulated Braided Conductor

The ideal ready-to-install flexible wire replacement solution that is specifically designed for connections to all molded case circuit breakers, including the most compact breakers on the market.

It connects to the front access terminals of the breakers without any additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. IBSB/IBSBR is available in cross section of 25 to 240 mm² (49.34 to 273.65 kcmil), lengths from 230 to 1,030 mm (9.06″ to 40.55″), and 80 to 350 A tinned and 400 to 630 A bare (red) copper.

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)



Categories: , ,

Product Description

  • Suitable for all main molded case circuit breakers
  • Resistant to vibration, improving reliability and performance
  • Improves assembly flexibility and aesthetics
  • Quick and easy installation
  • No additional cutting, stripping, crimping and punching needed
  • Integral palm without lugs or terminals reduces material and assembly weight
  • Small wire diameter provides maximum flexibility
  • RoHS compliant

IBSBTechnical data

  • Excellent electrical contact with integral palm construction
  • Good tensile strength

Insulation

  • High resistance: vinyl compound
  • Maximum working temperature: 105º C
  • Self-extinguishable: UL 94 V0
  • Dielectric strength: 20 kV/mm
  • Max. working voltage: 1000 V AC-1500 V DC-IEC & UL 758
  • Max. working voltage: 600V AC/DC – UL 67
  • Class II Conductors (IEC 61439-1, Chapter 8.4.4 Protection by total insulation)

Braid

  • Tinned (IBSB 25-50-70-100) or red (IBSBR 120-185-240) electrolytic copper
  • Wire diameter: 0.15 mm for maximum flexibility – According to EN 13602
  • Very good resistance to vibration

insulated braided conductor certifications
Certification & Approvals

  • IEC 60439.1 & IEC 61439.1
  • cRUus per UL67 & CAN/CSA C22.2 No. 29 (File E125470)
  • RU per UL758 (File E316390)
  • CE conformity • RoHS compliance
  • American Bureau of Shipping (ABS®) Certificate No. 13-HS1070074-PDA Marine & Offshore Applications
