IBS Flat Insulated Braided Conductor

IBS Flat Insulated Braided Conductor

The ideal ready-to-install flexible wire replacement solution. They connect directly to the front access terminals of an electrical device without the need for additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. IBS Flat Insulated Braided Conductors are available in cross section of 25 and 50 mm² (49.34 and 98.68 kcmil), lengths from 230 to 1,030 mm (9.06″ to 40.55″), and amperages ranging from 177 to 274 A.

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)



Categories: , ,

Product Description

insulated braided conductor certifications

  • Suitable for all main electrical devices
  • Resistant to vibration, improving reliability and performance
  • Improves assembly flexibility and aesthetics
  • Quick and easy installation
  • No additional cutting, stripping, crimping and punching needed
  • Integral palm without lugs or terminals reduces material and assembly weight
  • Small wire diameter provides maximum flexibility
  • RoHS compliant

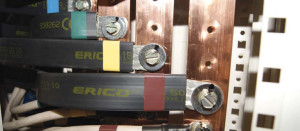

IBS-productTechnical Data

  • Intensity = 100A up to 1000A
  • Excellent electrical contact
  • Good tensile strength

Insulation
• High resistance : vinyl compound
• Max. working temperature : 105°C
• Self-extinguishable: UL® 94 VO
• Dielectric strength: 20 kV/mm
• Max. working voltage: 1000 V AC-1500 V DC-IEC & UL 758
• Max. working voltage: 600V AC/DC – UL 67

Braid
• Tinned electrolytic copper for better corrosion protection
• Wire diameter: 0.15 mm for maximum fl exibility
• Very good resistance to vibration

Dielectric Test
• 3500 VAC, 1 minute according to the IEC 60439.1 standard (rated insulation voltage Ui 1000 VAC)
• 6000 VAC, 1 minute with 6 mA creepage current set up

Certification & Approval
• IEC 60439.1 & IEC 61439.1
• cRUus per UL67 & CAN/CSA C22.2 No. 29
• CE conformity
• RoHS compliance
• RU per UL758
• American Bureau of Shipping (ABS®)
