Product Description

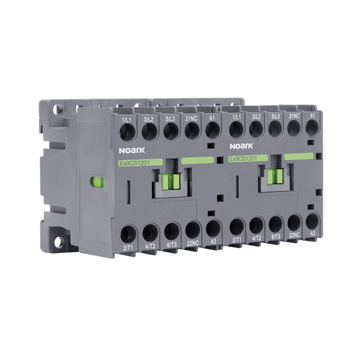

IEC Contactors – Ex9CSR 6 ~ 12 A Mini (Reversing)
- Contactors according to IEC/EN 60947-4-1, IEC/EN 60947-4-1, UL 60947-1 and UL 60947-4-1
- Four frame sizes with rated current up to 500 A at 690 V AC-3
- Coil control voltage 24~600 Vac, 24~250 Vdc; 24~600 Vac/dc (115~300 A); 36~600 Vac/dc (400~500 A)
- Wide range operating coil available for 115~500 A contactor
- Mounts onto DIN rail 35 mm or 75 mm or onto panel (frame sizes 09~38 mount on 35 mm; 40~100 mount on 35 mm or 75 mm; 115~500 cannot be mount on DIN rail, only mount by screw)
Contactors and Relays Catalogue (37.2 MB)
Related Products
-
IEC Contactors Ex9CMS 6~12 A Mini (Non-Reversing)
- AC-3 contactor ratings from 630 A and AC-1 contactor ratings to 800 A
- Coil voltages from 24~600 Vac, 50/60 Hz
- Full Voltage Non-Reversing (FVNR) and Full Voltage Reversing (FVR)
- 5 kA @ 600 Vac
- Built-on NO or NC auxiliary contacts to 32 A
- IP20 finger and back-of hand safe
- 3 and 4 pole versions including 2NO+2NC and 4NO configurations
- 95 A mounts on standard 35mm DIN rail (40~95 can also mount on 75 mm DIN rail)
- Compatible with Ex9RD thermal overload relays
- Plug-on accessories for reduced installation time
- Coil replacement on standard contactor from 9~630 A
Contactors and Relays Catalogue (37.2 MB)
Read more -
Thermal Overload Relays Ex9RD 11.5 ~ 630 A
- Rated current up to 630 A @ 600 Vac, 50/60 Hz
- Overload protection trip Class 10 A
- Phase loss sensitivity
- Temperature compensation from -13 to 131 °F (-25 to +55 °C)
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- STOP and TEST function
- Direct mount to contactors or 35 mm DIN rail mounting base option
Contactors and Relays Catalogue (37.2 MB)
Read more -
Ex9C IEC Contactors
Features
- Contactors according to IEC / EN 60947-4-1, UL 60947-1 and UL 60947-4-1
- Four frame sizes with rated current up to 500 A at 690 V AC-3
- Coil control voltage 24 ~ 600 Vac, 24 ~ 250 Vdc; 24 ~ 600 Vac/dc (115 ~300 A); 36 ~ 600 Vac/dc (400 ~500 A);
- Wide range operating coil available for 115 ~ 500 A contactor
- Rated conditional short circuit current Iq 50 kA
- Suitable mainly for industrial applications, can be used also for domestic ones
- Mounting onto device rail (DIN) 35 mm or 75 mm (frame sizes 38, 65, 100) or onto panel
