Product Description

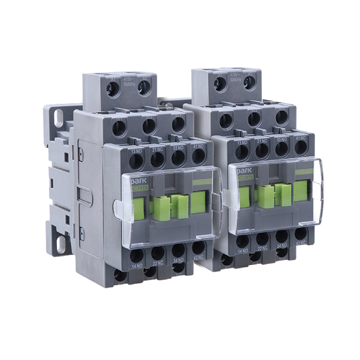

IEC Contactors – Ex9CR 9 ~ 500 A Standard (Reversing)
- Contactors according to IEC/EN 60947-4-1, IEC/EN 60947-4-1, UL 60947-1 and UL 60947-4-1
- Four frame sizes with rated current up to 500 A at 690 V AC-3
- Coil control voltage 24~600 Vac, 24~250 Vdc; 24~600 Vac/dc (115~300 A); 36~600 Vac/dc (400~500 A)
- Wide range operating coil available for 115~500 A contactor
- Mounts onto DIN rail 35 mm or 75 mm or onto panel (frame sizes 09~38 mount on 35 mm; 40~100 mount on 35 mm or 75 mm; 115~500 cannot be mount on DIN rail, only mount by screw)
Contactors and Relays Catalogue (37.2 MB)
