Ex9CMR IEC contactors

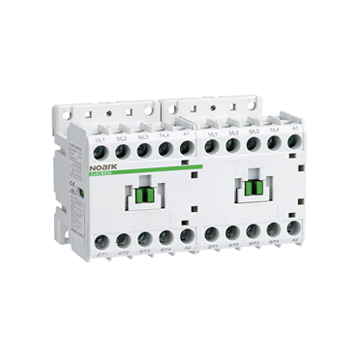

IEC Contactors Ex9CMR 6~12 A Mini (Reversing)

  • AC-3 contactor ratings from 630 A and AC-1 contactor ratings to 800 A
  • Coil voltages from 24~600 Vac, 50/60 Hz
  • Full Voltage Non-Reversing (FVNR) and Full Voltage Reversing (FVR)
  • 5 kA @ 600 Vac
  • Built-on NO or NC auxiliary contacts to 32 A
  • IP20 finger and back-of hand safe
  • 3 and 4 pole versions including 2NO+2NC and 4NO configurations
  • 95 A mounts on standard 35mm DIN rail (40~95 can also mount on 75 mm DIN rail)
  • Compatible with Ex9RD thermal overload relays
  • Plug-on accessories for reduced installation time
  • Coil replacement on standard contactor from 9~630 A

pdf icon smallContactors and Relays Catalogue (37.2 MB)



Categories: , ,

Product Description

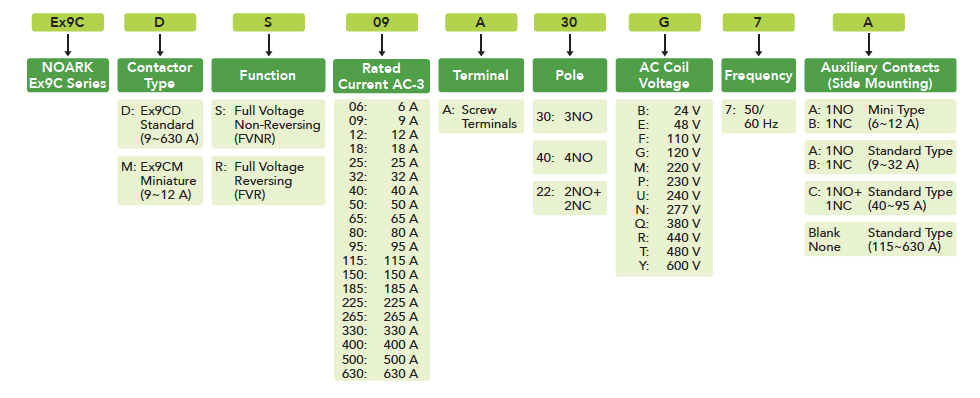

IEC-contactors-Ex9CDCM-selection-guide
