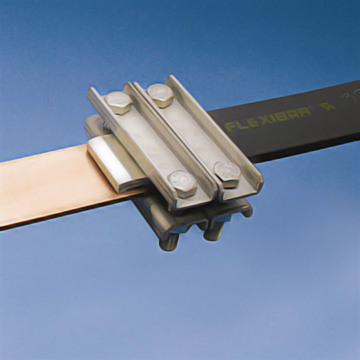

HCBC high current busbar clamp

HCBC High Current Busbar Clamp

  • Connects copper busbar to copper busbar, ERICO® FLEXIBAR® or power shunt
  • Made with non-magnetic materials for high current connections between ERICO® FLEXIBAR® and rigid busbars such as transformer terminals
  • Rigid design assures even contact pressure
  • Installs quickly and easily
  • Ideal for on site modifications
  • RoHS compliant

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

Categories: , , ,

Product Description

  • Material: Stainless Steel 304
  • Clamping Capacity: 40 mm
Part Number Description Conductor Width Depth
D		 Height
H		 Width
W		 Thickness
T		 Torque
TQ		 Unit Weight
553100 HSBC 80 80 mm 20 mm 40 mm 140 mm 3 mm 100 N-m 0.84 kg
553110 HSBC 100 100 mm 20 mm 40 mm 160 mm 3 mm 100 N-m 0.92 kg
553120 HSBC 120 120 mm 20 mm 40 mm 180 mm 3 mm 100 N-m 1.00 kg

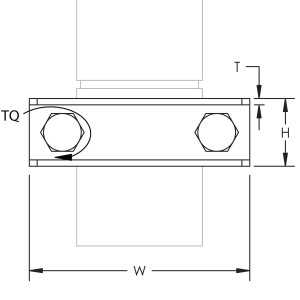

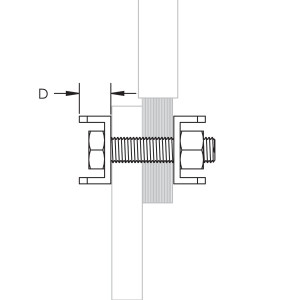

HCBC high current busbar clamp specifications 1 HCBC high current busbar clamp specifications 2
