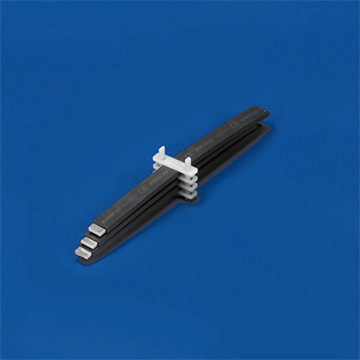

FS spacer clamp 24

FS Spacer Clamp, Snap Close FS32 (553560)

  • FS spacer clamp certificationsHelps ensure correct support for ERICO FLEXIBAR, IBSB & IBSBR in parallel, without damage to the insulation.
  • Helps ensure correct space for optimum cooling.
  • 4 ERICO FLEXIBAR in parallel maximum
  • UL 67
  • Recommended distance between clamps: 16 inches.

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)

SKU: 553560 Categories: , , ,

Product Description

Part Number 553560
Material Polyamide
Working Temperature -40 to 130 °C
Flammability Rating UL® 94HB
Conductor Width 32 mm Max
Height (H) 53 mm
Length (L) 38 mm
Hole Size (HS) 7 mm
Unit Weight 0.018 kg
Certifications EAC 8546901000 (Russian Federation)
UR
Standard Packaging Quantity 25 pc
UPC 78285644977
EAN-13 3479775535609



FS spacer clamp 24 dimensions Recommended distance between supports is 400 mm (15 3/4″).

Features

  • Provides support for ERICO® FLEXIBAR® and insulated braided conductors without damaging the insulation
  • Ensures correct spacing for optimum cooling
  • Supports up to four conductors in parallel
  • Easy to install
  • Halogen free
  • RoHS compliant

Download Catalogue

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)
