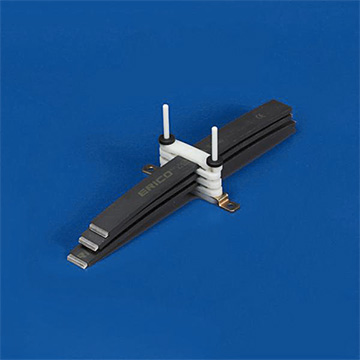

FS Erico Flexibar spacer clamp

FS Spacer Clamp

  • FS spacer clamp certificationsHelps ensure correct support for ERICO FLEXIBAR, IBSB & IBSBR in parallel, without damage to the insulation.
  • Helps ensure correct space for optimum cooling.
  • 4 ERICO FLEXIBAR in parallel maximum
  • UL 67
  • Recommended distance between clamps: 16 inches.

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)



Read more

Availability: Out of stock
Read more

Availability: Out of stock
Categories: , , ,

Product Description

  • Finish: Electrogalvanized
  • Material: Polyamide; Steel
  • Working Temperature: -40 to 130 °C
  • Flammability Rating: UL® 94HB

Click part number to access single product details

Part Number Description Conductor Width Height H Length L Hole Size HS A Packaging Quantity Unit Weight
553570 FS 40 – 63 40 -50 & 63 mm 95 mm / 3.74 in 166 mm / 5.90 in 8.5 mm 150 mm 10 0.10 kg / 2.20 lbs
553580 FS 80 – 100 80 – 100 mm 140 mm / 5.51 in 224 mm / 7.87 in 8.5 mm 200 mm 10 0.25 kg / 5.51 lbs

FS spacer clamp dimensions
Recommended distance between supports is 400 mm (15 3/4″).

Features

  • Provides support for ERICO® FLEXIBAR® and insulated braided conductors without damaging the insulation
  • Ensures correct spacing for optimum cooling
  • Supports up to four conductors in parallel
  • Easy to install
  • Spacers are halogen free
  • RoHS compliant

Specifications
