flat busbar supports

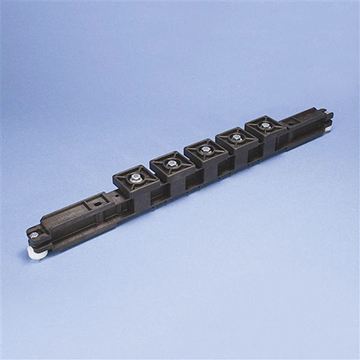

Flat Busbar Supports

  • Universal versatile support
  • Minimum space requirement
  • Working temperature:
    -40°C up to 130°C
  • Self extinguishing UL® 94 VO

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)


Categories: , ,
