FC ERIFLEX® FLEXIBAR® Clamp

Connects ERICO® FLEXIBAR® to copper busbar
Two plates complete with screws
Allows for excellent electrical contact
Installs quickly and easily
Ideal for on site modifications
RoHS compliant

Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

Categories: Connecting Clamps and Accessories, Erico, ERICO® FLEXIBAR® Accessories, Solutions for Electrical Power & Ground Connections

Description
Specifications

Product Description

Material: Steel
Finish: Electrogalvanized
Quality Class: 8.8
Clamping Capacity: 20 mm

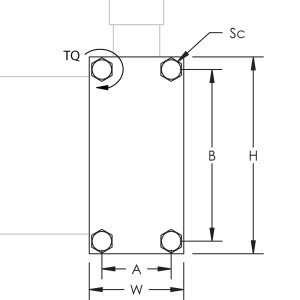

Part Number	Busbar Width	Conductor Width	Height H	Width W	A	B	Screw Diameter Sc	Torque TQ	Unit Weight
553020	50 mm	20 – 24 mm	75 mm	52 mm	36 mm	60 mm	M8	10 N-m	0.319 kg
553030	50 mm	32 mm	75 mm	60 mm	44 mm	60 mm	M8	10 N-m	0.362 kg
553040	50 mm	40 mm	75 mm	68 mm	52 mm	60 mm	M8	10 N-m	0.412 kg
553050	80 mm	20 – 24 mm	105 mm	52 mm	36 mm	90 mm	M8	10 N-m	0.432 kg
553060	80 mm	32 mm	105 mm	60 mm	44 mm	90 mm	M8	10 N-m	0.492 kg
553070	80 mm	50 mm	105 mm	78 mm	62 mm	90 mm	M8	10 N-m	0.642 kg
568700	100 mm	32 mm	125 mm	60 mm	44 mm	110 mm	M8	10 N-m	0.670 kg
568730	120 mm	32 mm	125 mm	60 mm	44 mm	130 mm	M8	10 N-m	0.760 kg
