FBC connectors for connecting without drilling

FBC Connectors for Connecting without Drilling

Very compact clamp for connecting cable conductors or ERICO® FLEXIBAR® to busbar without drilling
Conductor is clamped with a pressure plate
Clamps can be mounted and slid into position on busbar prior to connecting conductors
Connections can be added after busbar has been mounted
Single screw locks clamp and makes connection
GOST compliant
RoHS compliant

Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

Categories: Connecting Clamps and Accessories, Erico, ERICO® FLEXIBAR® Accessories, Solutions for Electrical Power & Ground Connections

Description
Specifications

Product Description

Material: Steel
Finish: Electrogalvanized
Complies With: IEC® 60999

Connectors for busbar thickness : 5 mm

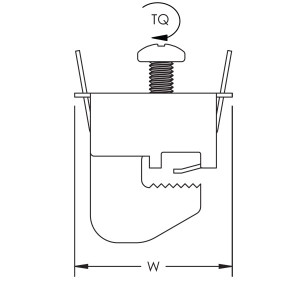

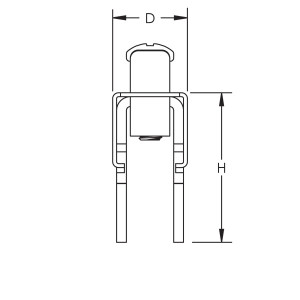

Part Number	Description	Conductor Size	Conductor Width	Depth D	Height H	Width W	Torque	Unit Weight
553405	FBC 5 x 4	1 mm² Stranded – 4 mm² Stranded	–	11 mm	23 mm	29 mm	2 N-m	0.016 kg
553400	FBC 5 x 6	2.5 mm² Stranded – 16 mm² Stranded	6.0 mm	14 mm	28 mm	31 mm	3 N-m	0.028 kg
553410	FBC 5 x 9	16 mm² Stranded – 50 mm² Stranded	9.0 mm	19 mm	36 mm	40 mm	6 to 8 N-m	0.068 kg
553510	FBC 5 x 15.5	35 mm² Stranded – 70 mm² Stranded	15.5 mm	25 mm	44 mm	40 mm	10 to 12 N-m	0.110 kg
553520	FBC 5 x 20	70 mm² Stranded – 185 mm² Stranded	20.0 mm	31 mm	48 mm	40 mm	12 to 15 N-m	0.132 kg

Connectors for busbar thickness : 10 mm

Part Number	Description	Conductor Size	Conductor Width	Depth D	Height H	Width W	Torque TQ	Unit Weight
553505	FBC 10 x 4	1 mm² Stranded – 4 mm² Stranded	–	12 mm	28 mm	29 mm	2 N-m	0.018 kg
553430	FBC 10 x 6	2.5 mm² Stranded – 16 mm² Stranded	6.0 mm	14 mm	33 mm	31 mm	3 N-m	0.030 kg
553440	FBC 10 x 9	16 mm² Stranded – 50 mm² Stranded	9.0 mm	19 mm	42 mm	40 mm	6 to 8 N-m	0.070 kg
553530	FBC 10 x 15.5	35 mm² Stranded – 70 mm² Stranded	15.5 mm	25 mm	49 mm	40 mm	10 to 12 N-m	0.112 kg
553540	FBC 10 x 20	70 mm² Stranded – 185 mm² Stranded	20.0 mm	31 mm	54 mm	40 mm	12 to 15 N-m	0.138 kg

Conductor must be stripped at least a distance equal to the width of the clamp.
