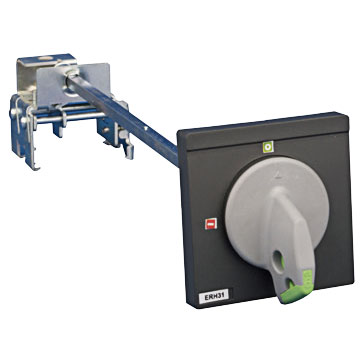

extended rotary handle

Extended Rotary Handle

Shaft Length: 6″ or 10″
Device Category: UL 489 and 489A
Position: Vertical, Front Mount; Horizontal, Side Mount; Vertical, Front Mount with Door Interlock; Horizontal, Side Mount with Door Interlock
Color: Grey/Green or Red/Yellow

Categories: , ,

Product Description

extended rotary handle description

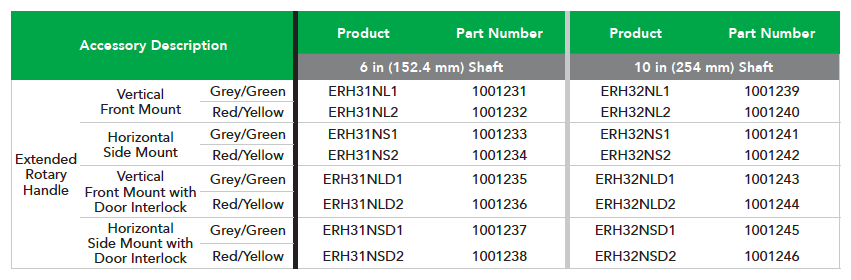

extended rotary handle part numbers

Additional Information

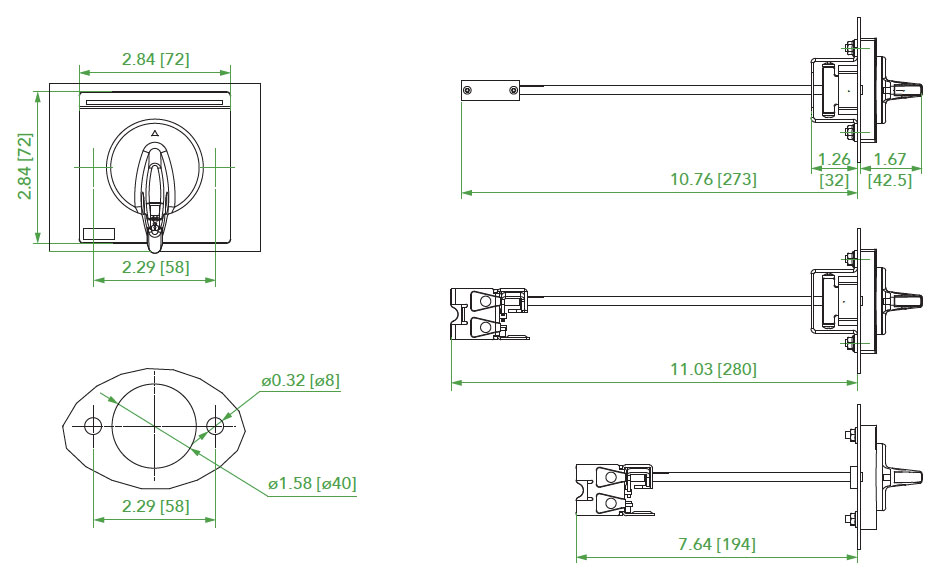

Dimensions

Dimensions

ERH31N/ERH32N
Extended Rotary Handle

Unit: in [mm]
extended rotary handle dimensions

Download Catalog

pdf icon small NOARK DIN Rail Miniature Circuit Breakers Catalog (11.7 MB)
