Product Description
Specifications
Click image to enlarge

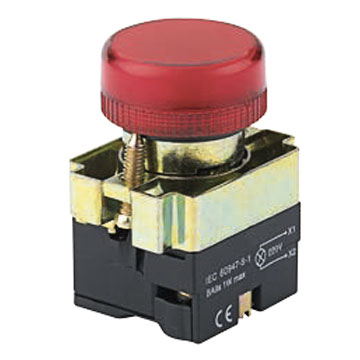

Ex9PBV6 Indicator Light
• Metal construction for superior durability and visual appeal
• UL recognized component and labeled IP65 (front) for protection against dust and water
• LED replaceable lamps are standard
• Low behind the panel depth
• Operators mount in a round 7/8″ (22.5 mm) hole that is interchangeable with competitor’s products
• Field convertible from maintained to momentary (available on maintained pushbuttons only)
• More than 1 million mechanical operations on momentary and half million on maintained pushbuttons
• Modular construction makes assembly fast and simplifies stocking of components and complete devices
Additional Information
| Application Solutions | Certifications: IEC/EN 60947, VDE 0660, CE Approved, UL Recognized Component, CSA Certified Rated Operational Voltage Ue (V) – Vac: 125, 240 or 415 |
|---|---|

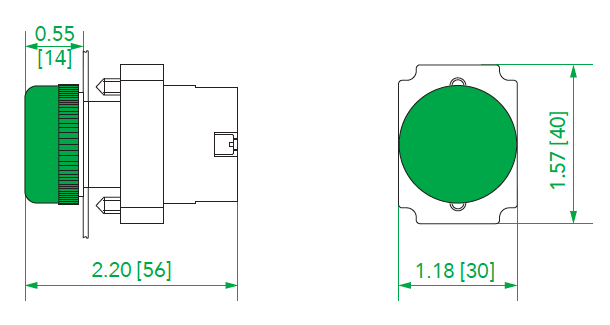

| Dimensions | Unit: in [mm]
|
Download Catalog
