Ex9PBG selector switch key 22mm pushbuttons Noark

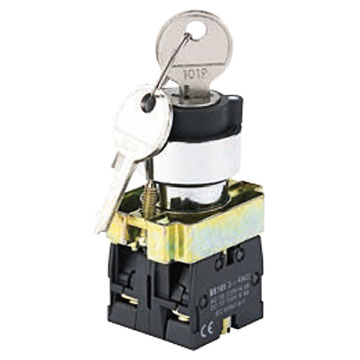

Ex9PBG Selector Switch Key

  • Metal construction for superior durability and visual appeal
  • UL recognized component and labeled IP65 (front) for protection against dust and water
  • LED replaceable lamps are standard
  • Low behind the panel depth
  • Operators mount in a round 7/8″ (22.5 mm) hole that is interchangeable with competitor’s products
  • Field convertible from maintained to momentary (available on maintained pushbuttons only)
  • More than 1 million mechanical operations on momentary and half million on maintained pushbuttons
  • Modular construction makes assembly fast and simplifies stocking of components and complete devices

22mm pushbuttons Noark certifications

Categories: ,

Product Description

Ex9PBG selector switch key 22mm pushbuttons Noark part numbers

Specifications

Ex9PB 22mm pushbuttons specifications

Additional Information

Application Solutions

Certifications: IEC/EN 60947, VDE 0660, CE Approved, UL Recognized Component, CSA Certified
Positions and Contacts: 2 Positions = 1NO, 1NC, 2NO, 2NC or 1NO+1NC; 3 Positions = 2NO, 2NC or 1NO+1NC

Rated Operational Voltage Ue (V) – Vac: 125, 240 or 415
Rated Operational Current (mA) @ 15 Vac: 125 = NA, 240 = 3, 415 = 1.9
Rated Operational Current (mA) @ 13 Vdc: 125 = 0.55, 240 = 0.27, 415 = 0
Rated Operational Current Ie (mA): le≤20
Rated Operational Voltage (V): Direct Type LED Lamp = 6~230 Vac/dc or Transformer Type 6V LED Lamp: 230~380 Vac/dc

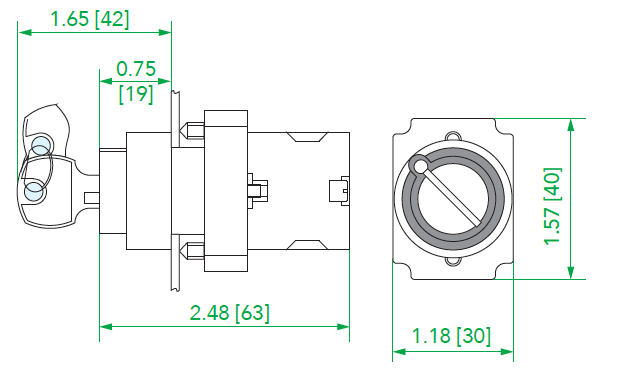

Dimensions

Unit: in [mm]

Ex9PBG selector switch key 22mm pushbuttons Noark dimensions

Download Catalog

pdf icon small NOARK 22mm Pilot Devices Catalog (6.8 MB)
