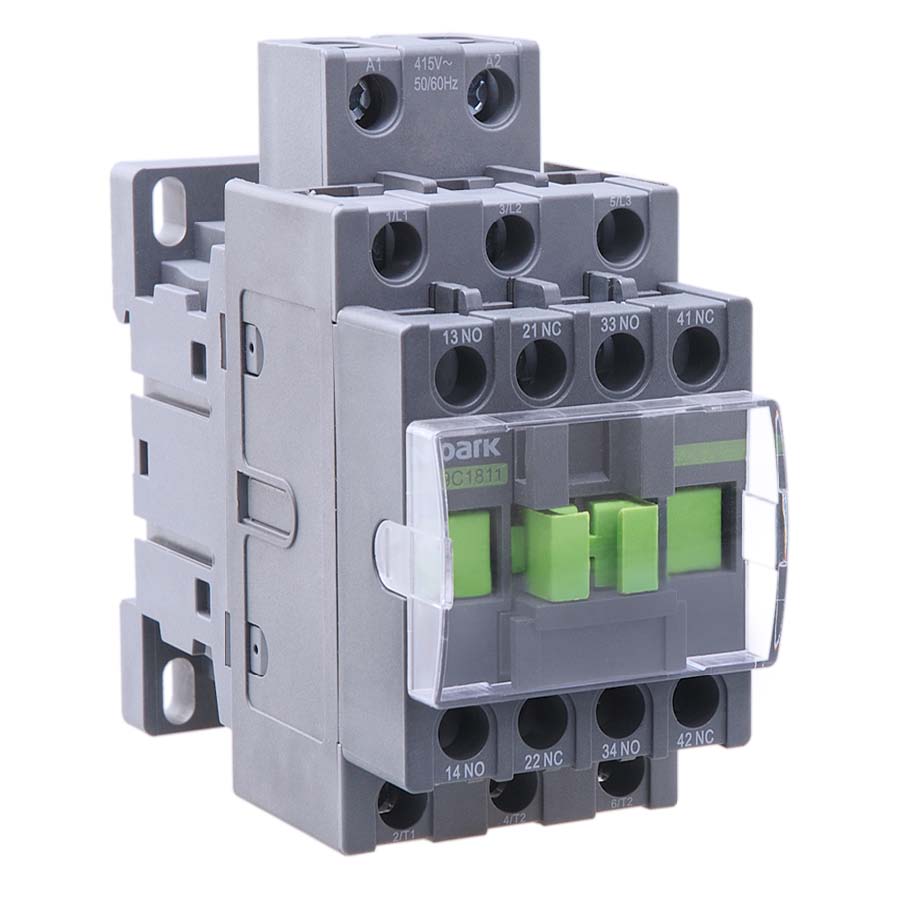

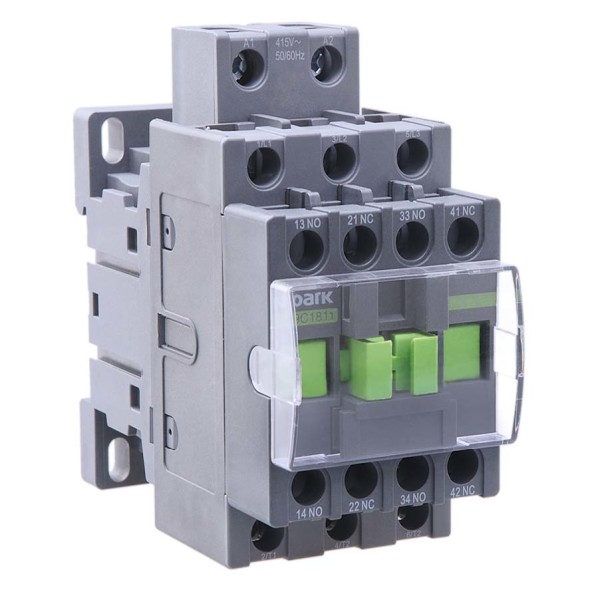

Ex9C Contactors

Ex9C IEC Contactors

Features

  • Contactors according to IEC / EN 60947-4-1, UL 60947-1 and UL 60947-4-1
  • Four frame sizes with rated current up to 500 A at 690 V AC-3
  • Coil control voltage 24 ~ 600 Vac, 24 ~ 250 Vdc; 24 ~ 600 Vac/dc (115 ~300 A); 36 ~ 600 Vac/dc (400 ~500 A);
  • Wide range operating coil available for 115 ~ 500 A contactor
  • Rated conditional short circuit current Iq 50 kA
  • Suitable mainly for industrial applications, can be used also for domestic ones
  • Mounting onto device rail (DIN) 35 mm or 75 mm (frame sizes 38, 65, 100) or onto panel
Category: Tags: , , , , ,

Product Description

Ex9C contactors are intended for various applications including heavy industrial ones. Splitting into four frame sizes brings optimization of electrical parameters and mechanical dimensions. All these frame sizes share accessory auxiliary contacts. Overload relays differ with the frame sizes in order to fit respective contactor of given rated current.

Frame size 18 contains contactors with rated currents AC-3 9, 12 and 18 A at 400 V. Size 38 consists of rated
currents 25, 32, 38 A. Version 65 is splitted into currents 40, 50 and 65. Finally frame size 100 is covered
with rated currents 80 and 100 A.

Download Catalog

icon-pdf

Catalog – Contactors and Relays (PDF)
