FGBS

Cabling Sleeves : ERIFLEX ZIPFLEX, FGBS & SBS

  • ERIFLEX® ZIPFLEX: Easy screening using ERIFLEX® specific tool
  • Glass fiber & isolating silicone sleeves: resistant to high temperature

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)


Categories: , ,

Product Description

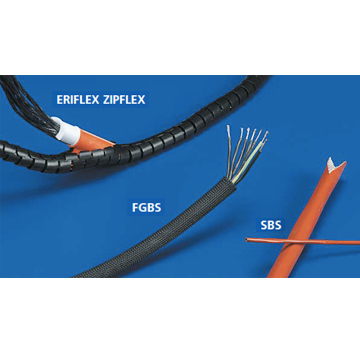

sleeves ZIPFLEX FGBS SBSERIFLEX ZIPFLEX Sleeves

  • Polypropylene
  • Easy and quick screening
  • Practical tool included in every box
  • Color: black
  • Usage maxi: T° 140° C
  • Usage mini: T° – 30° C
  • Continue: T° -30 till + 110° C
  • Halogen free UL® 94 HB

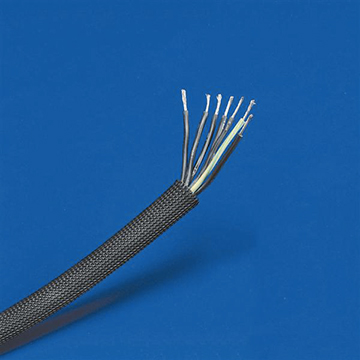

FGBS Glass Fiber Braided Sleeves

  • Glass fi ber impregnated with high temperature varnish
  • Thermal insulation and mechanical protection
  • Working temperature: -70°C up to 400°C
  • Halogen free
  • Flammability UL 1441 VW1
  • Expandable on a 1 to 3 ratio basis

cabling sleeves exampleSBS Isolating Silicone Sleeves

  • Glass fi ber coated with silicone
  • Cost effective sleeve for insulation
  • High flexibility
  • Dielectric voltage: 2.5 Kv
  • Working temperature: -60° up to 220°C
  • Halogen free
  • Flammability UL 1441 VW1

Specifications
