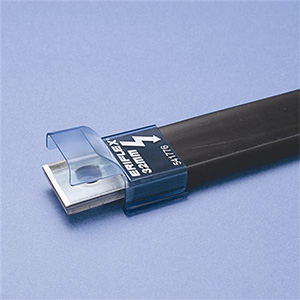

ERICO® FLEXIBAR® End Cover 20, 24 & 32

  • End cover for ERICO® FLEXIBAR® and Insulated Power Braid
  • Allows for visual inspection of connection
  • Easy fitting after fixing
  • RoHS compliant

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)



Read more

Availability: Out of stock

Read more

Availability: Out of stock

Read more

Availability: Out of stock

Product Description

  • Material: Polycarbonate
  • Flammability Rating: UL® 94V-0

Click part number to access single product details

Part Number Conductor Width Unit Weight
541774 20 mm 0.19 kg / 0.42 lbs
541775 24 mm 0.22 kg / 0.48 lbs
541776 32 mm 0.26 kg / 0.57 lbs

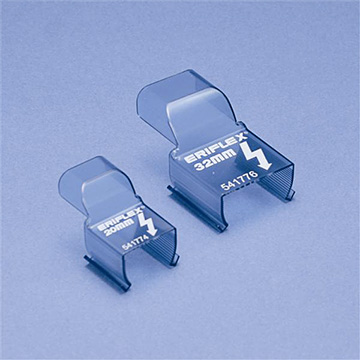

End Cover 20, 24 & 32
  • End Cover 20: Accessory for ERICO FLEXIBAR 20 mm, Kit 250A T, Kit 250A TN IBS 25, IBS 50, IBSB 50 and IBSB 70.
  • End Cover 24: Accessory for ERICO FLEXIBAR 24 mm and IBSB 100
  • End Cover 32: Accessory for ERICO FLEXIBAR 32 mm, Kit 630A T, Kit 630A TN, IBSBR 120, 185 and 240.
  • Visual inspection of connection (transparent cover)
  • Halogen-free
  • Self-extinguishing: UL® 94 V-0
  • RoHS compliant
  • Easy-fitting after bolting
