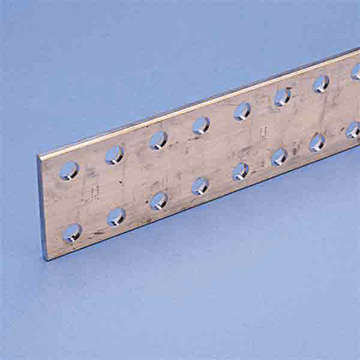

DPCB punched plain copper busbar double

DPCB Punched Busbars

Heavy-duty power connection
Circuit breaker, generator and prefabricated power network conductor
Alternative to large and multiple cables
Earth/ground connection
Power distribution
Rounded edges

Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

Categories: Copper Busbars, Erico, Solutions for Electrical Power & Ground Connections

Description
Specifications

Product Description

Material: Copper

Thickness : 5 mm

Part Number	Description	Width	Thickness	Length	Hole Size	Unit Weight
550400	DPCB 25 x 5	25 mm	5 mm	1,750 mm	10.5 mm	1.40 kg
550410	DPCB 50 x 5	50 mm	5 mm	1,750 mm	10.5 mm	6.80 kg
550420	DPCB 63 x 5	63 mm	5 mm	1,750 mm	10.5 mm	8.80 kg
550430	DPCB 80 x 5	80 mm	5 mm	1,750 mm	10.5 mm	4.40 kg
550440	DPCB 100 x 5	100 mm	5 mm	1,750 mm	10.5 mm	5.70 kg
550450	DPCB 125 x 5	125 mm	5 mm	1,750 mm	10.5 mm	11.40 kg

Thickness : 10 mm

Part Number	Description	Width	Thickness	Length	Hole Size	Unit Weight
550350	DPCB 50 x 10	50 mm	10 mm	1,750 mm	10.5 mm	6.80 kg
550360	DPCB 60 x 10	60 mm	10 mm	1,750 mm	10.5 mm	8.80 kg
550370	DPCB 80 x 10	80 mm	10 mm	1,750 mm	10.5 mm	11.40 kg
550380	DPCB 100 x 10	100 mm	10 mm	1,750 mm	10.5 mm	14.50 kg
550390	DPCB 120 x 10	120 mm	10 mm	1,750 mm	10.5 mm	18.40 kg
