purpose-contactors-Ex9CK

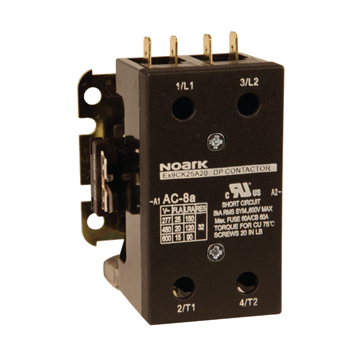

Definite Purpose Contactors Ex9CK 20 ~ 90 A

  • Rated current from 20~90 A
  • Coil voltages from 24~600 Vac, 50/60 Hz
  • Coil is Class H 180 ºC (356 ºF)
  • Available with enclosed coils for protection against particle contamination
  • 1, 2, 3 and 4 pole configurations
  • Industry standard mounting plate provides easily accessible mounting holes
  • More connection terminal options, including screw or lug connections each with quick connect spades
  • Double E magnet assembly provides optimal performance with reduced power consumption
  • 1NO+1NC auxiliary contact block with 600 Vac available as an option
  • Base assembly is made from high arc-resistant polyester

pdf icon smallContactors and Relays Catalogue (37.2 MB)



Categories: , ,

Product Description

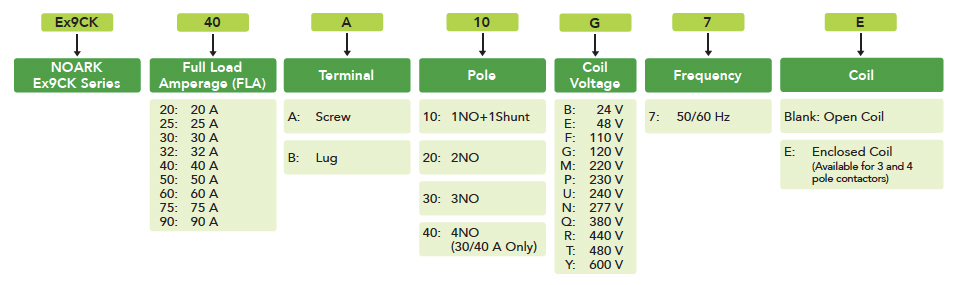

Ex9CK-selection-guide

Specifications
