compact reinforced busbar supports

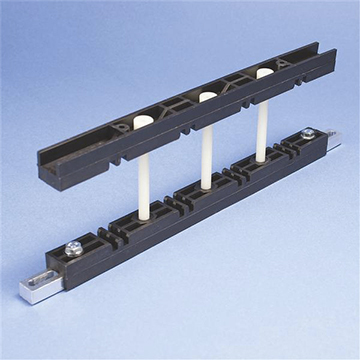

Compact and Reinforced Busbar Supports

  • Minimum space requirement
  • Easy and quick assembly
  • Fits within 400 mm depth panelboard
  • Provision for direct fixing of a screen
  • Halogen free
  • Working temperature:
    -40°C up to 130°C
  • Self extinguishing UL® 94 VO

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)


Categories: , ,

Specifications
