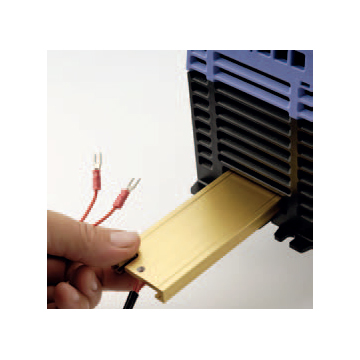

Brake Resistors

OPTIBRAKE
Dynamic Braking Resistors

Optibrake dynamic braking resistors are designed specifically for the Optidrive range. For use with high inertia loads which need to be stopped rapidly. Optibrake dynamic braking resistors assist the Optidrive in managing the electrical energy returned from the motor during braking by converting it to heat energy.

pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



Categories: ,
