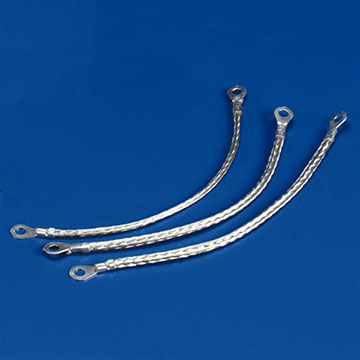

BJ Round Braid with Crimped Lugs

A complete range of ground flexible connections from 6 to 100 mm2 section and from 100 to 500 mm length with integral palm :

  • Ready to use out of the box, saving installation time and labor
  • Recommended by the EMC directives
  • Allows for bending very close to the contact area
  • Good resistance to vibration and fatigue
  • Integral palm, without tin or crimped lugs for superior electrical contact and tensile strength resistance
  • Material savings: No lugs or terminals
  • RoHS compliant

pdf icon smallClick here for Erico Flexible Conductors Catalogue (14.2 MB)



Categories: , ,

Product Description

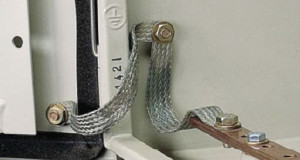

MBJ-BJ-img

  • Finish: Tinned
  • Material: Copper
  • Working Temperature: 105 °C Max

Technical Data

• Recommended by EMC/EMI directives

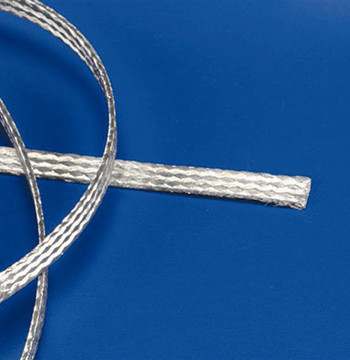

• Flat tinned copper braids
• Electrolytic copper Cu-ETP according to standard EN13602
• Copper purity of minimum 99.9%
• Maximum resistivity of 0,017241 mm2/m at 20ºC
• Standard wire diameter; 0.15 mm
• Bends very close to the contact area
• Working temperature up to 105ºC

Certification & Approvals
• UL® Listed (UL467) except BJ
• GOST certificates
• RoHS 2002/95/EC Compliant
• IEC 60439.1 & 61439.1
