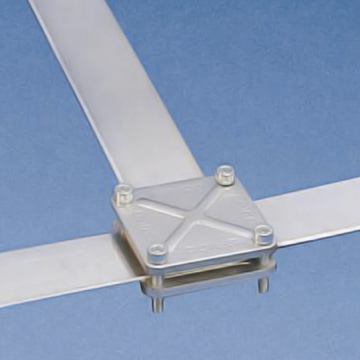

BC Ribbed-Steel Busbar Clamp

Product Description

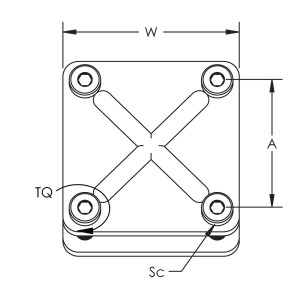

Part Number	Busbar Width	Width W	A	Screw Diameter Sc	Torque TQ	Unit Weight
553200	30 mm	56 mm	42 mm	M6	7 N-m	0.310 kg
553210	40 mm	66 mm	52 mm	M6	7 N-m	0.370 kg
553220	50 mm	83 mm	64 mm	M8	20 N-m	0.590 kg
553230	63 mm	93 mm	74 mm	M8	20 N-m	0.740 kg
553250	80 mm	118 mm	96 mm	M10	40 N-m	0.118 kg
553260	100 mm	144 mm	118 mm	M10	40 N-m	1.720 kg

Clamping capacity is calculated using included screws. Maximum clamping capacity is 50 mm using longer SAE Grade 5 screws.
