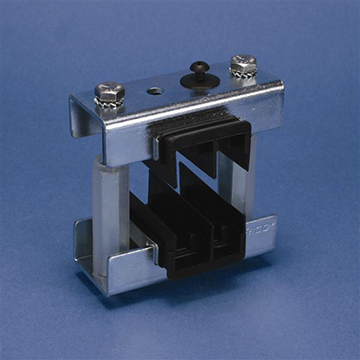

ABS adjustable busbar supports

Adjustable Busbar Support

  • Freedom to select the desired distance
  • Extremely robust construction
  • Universal fixing system
  • Time saving due to rapid assembly process
  • Working temperature:
    -40°C up to 130°C
  • Halogen free
  • Self extinguishing UL® 94 VO

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)


Categories: , ,
